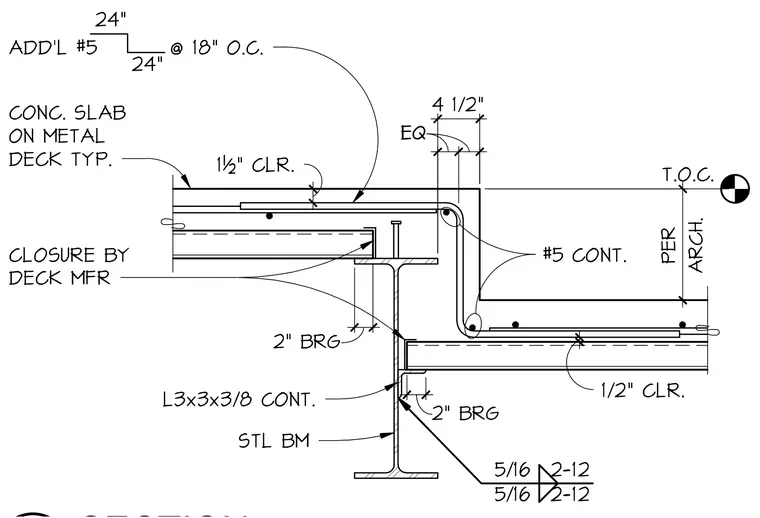

A concrete slab on metal deck bears on a structural steel beam with a two-inch bearing width on each side. A continuous L3x3x3/8 angle is welded to the steel beam web with five-sixteenths fillet welds at twelve-inch intervals. Additional number five reinforcing bars are placed at eighteen inches on center, supplemented by continuous number five bars maintaining one-and-a-half-inch clearance. A closure piece by the deck manufacturer finishes the deck edge.
STL BM ADD'L #5 @ 18" O.C. #5 CONT. L3x3x3/8 CONT. 1½" CLR. CLOSURE BY DECK MFR 1/2" CLR. CONC. SLAB ON METAL DECK TYP. 5/16 2-12 5/16 2-12 T.O.C. ARCH. PER 2" BRG 2" BRG 4 1/2" EQ EQ 24" 24"
