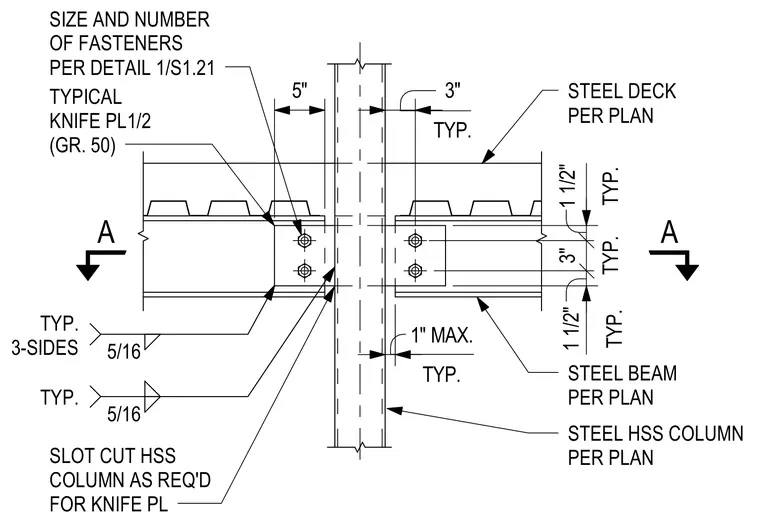

A structural steel drag beam connects to an HSS column using a typical one-half-inch Grade 50 knife plate inserted into a slot cut into the HSS column as required. The knife plate is welded to the HSS column with a five-sixteenth-inch fillet weld on three sides. Steel beams and steel deck are sized per plan. Fastener size and number are determined per detail reference.
TYP. 1" MAX. TYP. 1 1/2" TYP. 3" TYP. 1 1/2" TYP. 3" A A SIZE AND NUMBER OF FASTENERS PER DETAIL 1/S1.21 STEEL HSS COLUMN PER PLAN STEEL DECK PER PLAN STEEL BEAM PER PLAN TYPICAL KNIFE PL1/2 (GR. 50) 5/16 TYP. 5" 5/16 TYP. 3-SIDES SLOT CUT HSS COLUMN AS REQ'D FOR KNIFE PL
