Structural · S-5AJ2X

LSL Chord Bolted Plate Connection Detail

Materials

Connections

About this detail

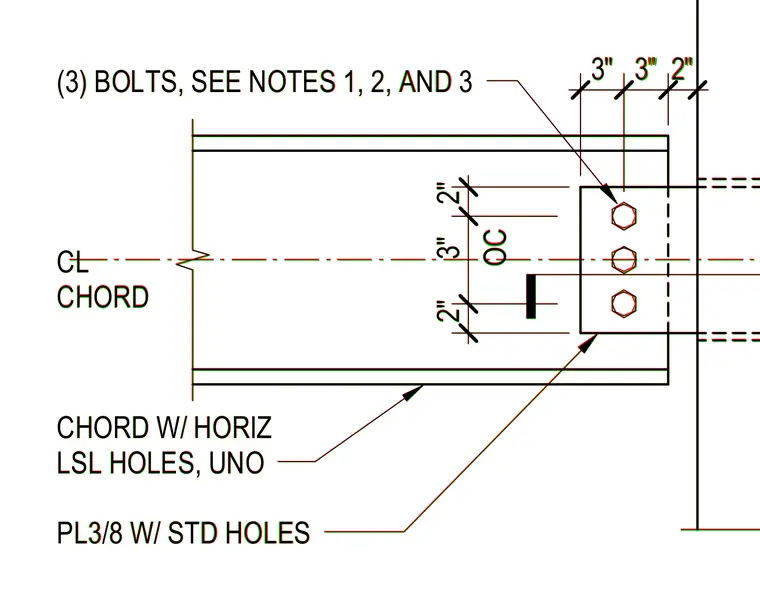

A laminated strand lumber chord with horizontal strand lumber holes features a three-eighths-inch steel plate with standard holes centered on the chord. Three bolts fasten the connection with dimensions of two inches, three inches, and three inches, matching the notes provided on the drawing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
