A steel stair stringer bears onto a thickened concrete slab on grade with a 2-foot-wide thickened zone extending 12 inches typically. The stringer consists of an L3x3x1/4 angle connected with three-quarter-inch diameter by 8-inch-long expansion anchor bolts at each stringer typically. A 3/16-inch fillet weld is specified on three sides of the stringer connection as shown. The concrete slab on grade is thickened per plan at the stringer location.

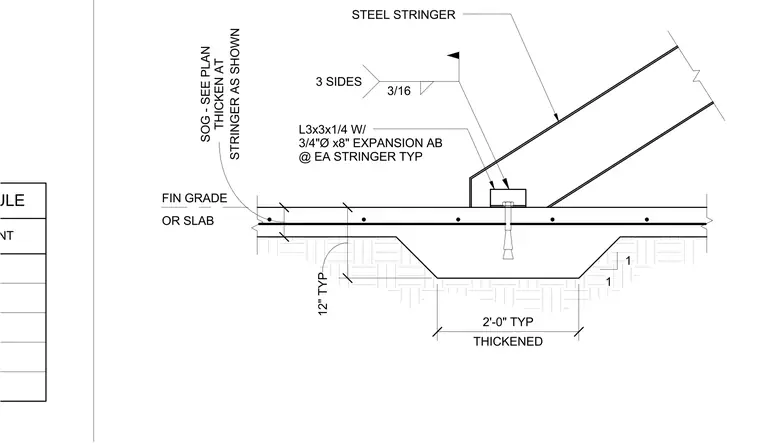

OR SLAB FIN GRADE THICKENED 2'-0" TYP 12" TYP 1 1 STEEL STRINGER L3x3x1/4 W/ 3/4"Ø x8" EXPANSION AB @ EA STRINGER TYP 3/16 3 SIDES STRINGER AS SHOWN SOG - SEE PLAN THICKEN AT BOLT EMBEDMENT SCHEDULE EMBEDMENT
