Utility penetrations through metal sill and top tracks are reinforced using one-quarter-inch by two-inch by one-foot-zero-inch steel plates welded to each side of the track. The plates receive a quarter-inch fillet weld for three inches at each end along the top and bottom edges. Holes exceeding the maximum unreinforced diameter require structural engineer notification and must be drilled rather than sawn.

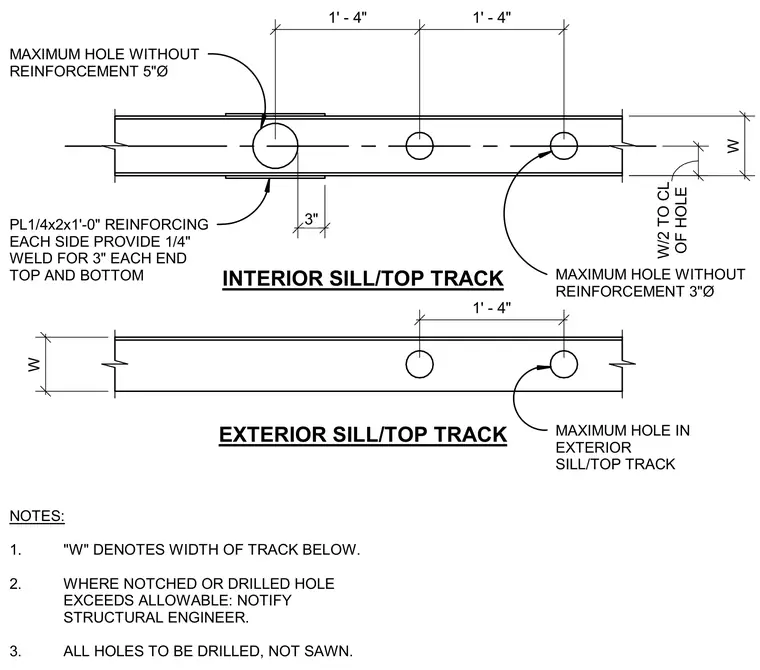

MAXIMUM HOLE WITHOUT REINFORCEMENT 3"Ø MAXIMUM HOLE WITHOUT REINFORCEMENT 5"Ø MAXIMUM HOLE IN EXTERIOR SILL/TOP TRACK PL1/4x2x1'-0" REINFORCING EACH SIDE PROVIDE 1/4" WELD FOR 3" EACH END TOP AND BOTTOM 1' - 4" 1' - 4" OF HOLE W/2 TO CL W EXTERIOR SILL/TOP TRACK INTERIOR SILL/TOP TRACK 3" W 1' - 4" NOTES: 1. "W" DENOTES WIDTH OF TRACK BELOW. 2. WHERE NOTCHED OR DRILLED HOLE EXCEEDS ALLOWABLE: NOTIFY STRUCTURAL ENGINEER. 3. ALL HOLES TO BE DRILLED, NOT SAWN.
