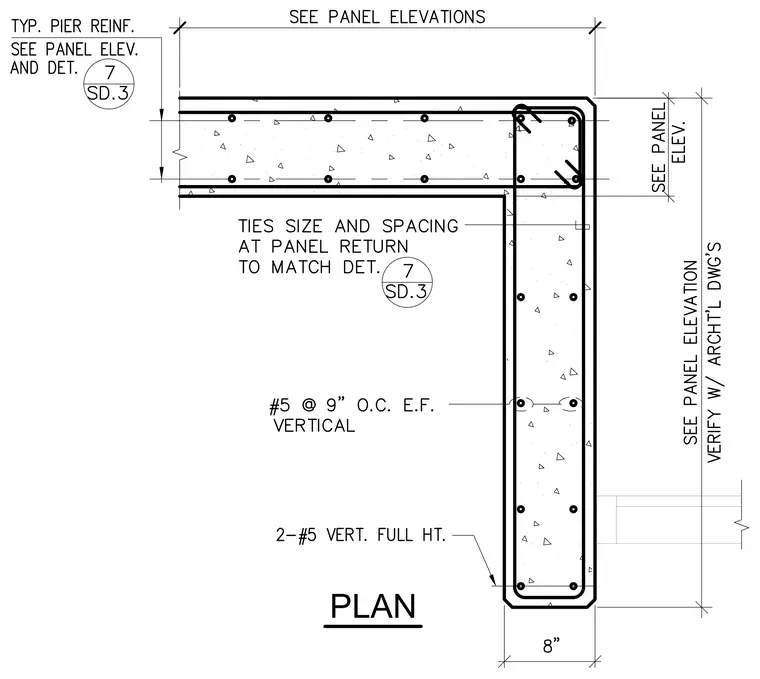

A reinforced concrete panel corner has an eight-inch thickness. Vertical reinforcement consists of number five bars at nine inches on center each face, supplemented by two number five vertical bars running full height at the corner. Panel returns utilize specific ties sized and spaced per detail seven on sheet SD.3. Typical pier reinforcement is referenced to panel elevations and detail seven on sheet SD.3.
