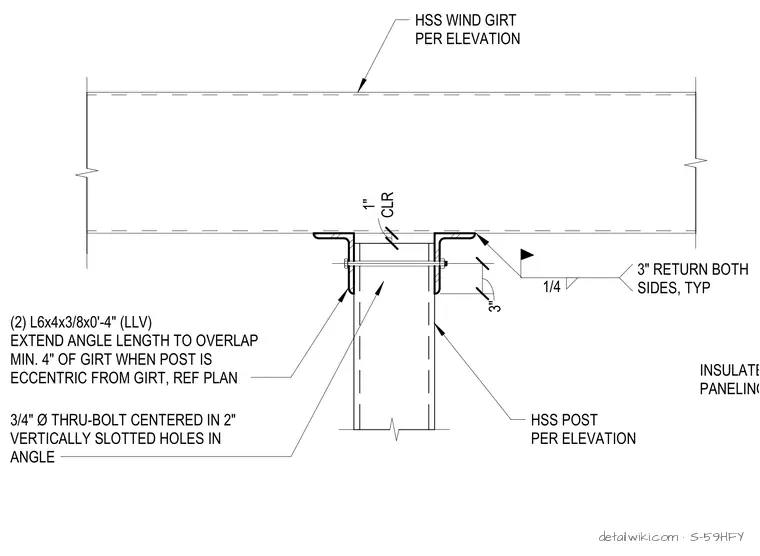

This connection secures a hollow structural section post to a hollow structural section wind girt using two L6x4x3/8 inch angles, each four inches long. The angles are welded to the wind girt with a 1/4 inch fillet weld featuring a three-inch return on both sides. The post is attached to the angles via a 3/4 inch diameter through-bolt centered in two-inch vertically slotted holes to allow for movement. A one-inch clearance is maintained between the post and the girt. If the post is eccentric from the girt, the angle length must be extended to provide a minimum of four inches of overlap.
Text on the drawing
HSS WIND GIRT. RE: ELEVATION HSS POST RE: ELEVATION 3/16 T/ STL ELEVATION INSULATED METAL PANELING PER ARCH HSS14X6X1/4 3/16 3 SIDES 3" HSS POST PER ELEVATION 1/4 3" RETURN BOTH SIDES, TYP 3/4" Ø THRU-BOLT CENTERED IN 2" VERTICALLY SLOTTED HOLES IN ANGLE (2) L6x4x3/8x0'-4" (LLV) EXTEND ANGLE LENGTH TO OVERLAP MIN. 4" OF GIRT WHEN POST IS ECCENTRIC FROM GIRT, REF PLAN CLR 1" HSS WIND GIRT PER ELEVATION INSULATED METAL PANELING PER ARCH
