Structural · S-59HAK

Buckling-Restrained Braced Frame Top and Bottom Connection

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Bracing Connection

About this detail

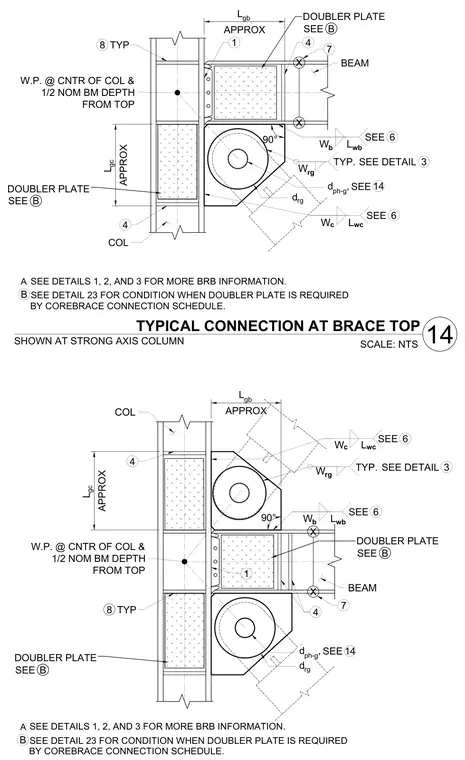

Typical top and bottom connections for a buckling-restrained brace framing into a steel column and beam intersection at the strong axis. The assembly features gusset plates welded to the column and beam flanges, with work points located at the center of the column and one-half of the nominal beam depth from the top. Doubler plates are specified at the column web as required by the corebrace connection schedule. Additional references point to specific connection details for brace information, weld sizes, and plate configurations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
