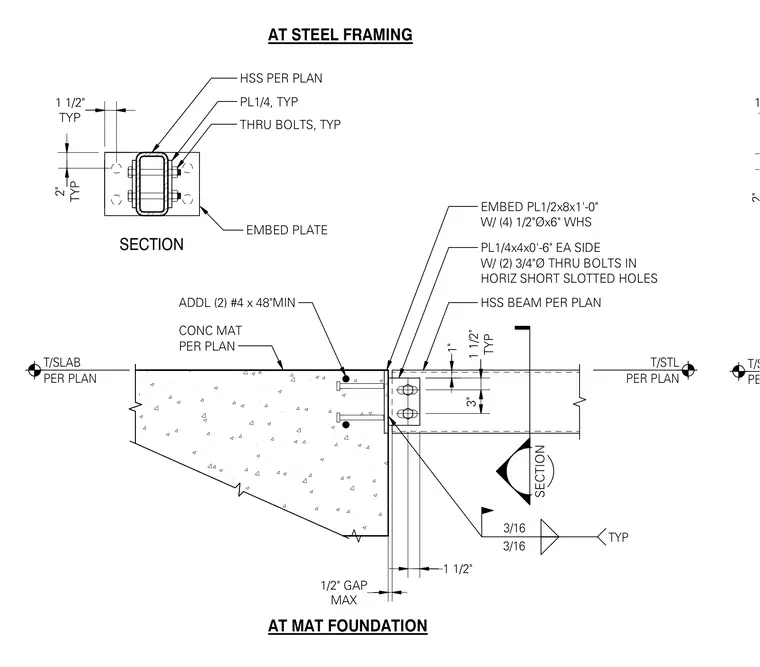

A hollow structural section spreader beam connects to a concrete mat foundation utilizing an embedded one-half by eight-inch by one-foot zero-inch steel plate secured with four one-half-inch diameter by six-inch welded headed studs and two additional number four by forty-eight-inch minimum reinforcing bars. A one-quarter by four by zero-six-inch plate is welded to each side of the beam with three-sixteenth-inch fillet welds, fastened using two three-quarter-inch diameter through bolts placed in horizontal short slotted holes. The assembly maintains a one-half-inch maximum gap from the concrete face with a top of slab and top of steel elevation sized per plan.
T/SLAB PER PLAN T/STL PER PLAN T/SLAB PER PLAN 3/16 3/16 TYP SECTION EMBED PL1/2x8x1'-0" W/ (4) 1/2"Øx6" WHS PL1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES HSS BEAM PER PLAN ADDL (2) #4 x 48"MIN MAX 1/2" GAP EMBED PLATE SECTION 1" TYP 1 1/2" 3" AT MAT FOUNDATION CONC MAT PER PLAN AT STEEL FRAMING PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN TYP 2" TYP 1 1/2" 2" TYP 1 1/2" 1 1/2"
