Structural · S-59BYR

Typical Rim Track Header

Materials

Timber / Wood Metal (misc.)

Elements

Beams Decks

Connections

Rebar Splice / Development Deck Attachment

About this detail

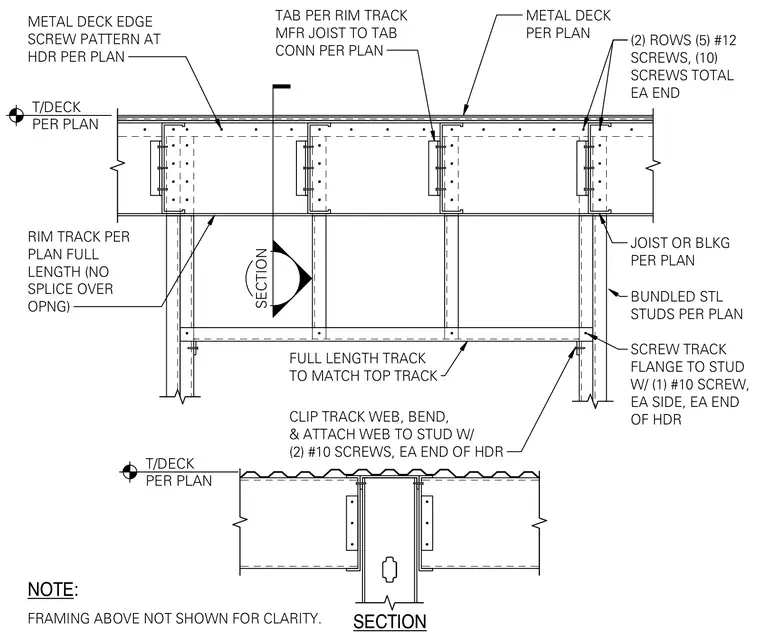

This assembly details a cold-formed steel rim track header supporting floor joists and metal deck. Bundled steel studs frame the opening below, fastened to the track flange with one number ten screw on each side and each end of the header. Two rows of five number twelve screws, totaling ten screws per end, connect the framing. The full-length rim track runs continuously with no splices positioned over openings. Clip track webs are clipped, bent, and attached to studs with two number ten screws at each end of the header.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
