Structural · S-599YV

Pipe Penetration and Clearance at Concrete Footing

Materials

Elements

About this detail

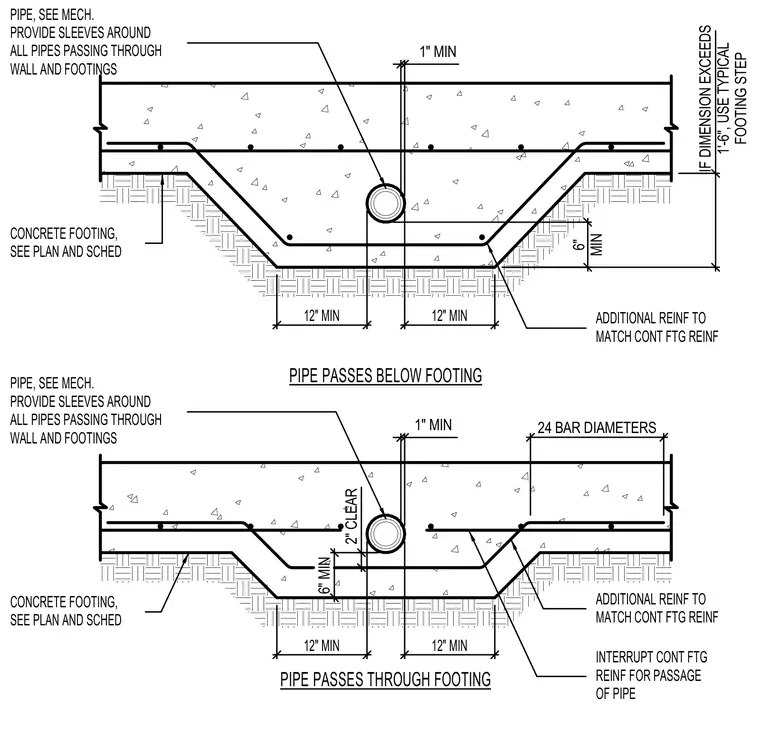

Two conditions apply for a pipe crossing a continuous concrete footing either passing through or below the concrete section. Sleeves are provided around all pipes passing through walls and footings with a minimum clearance. Continuous footing reinforcement is interrupted for the passage of the pipe when passing through, and additional reinforcement matching the continuous footing reinforcement is added alongside. Minimum dimensions include twelve inches of side clearance, twenty-four bar diameters for lap or embedment, two inches of clear cover, and six inches minimum thickness.
