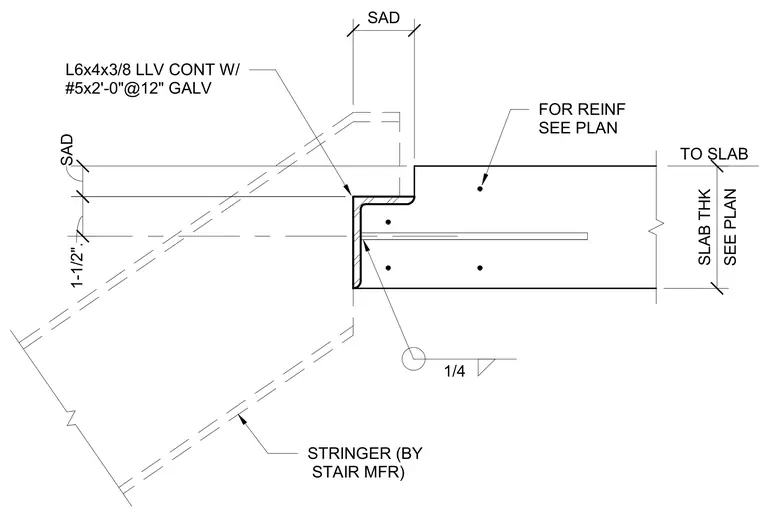

A continuous angle supports the stair stringer against the concrete slab edge. The angle is anchored into the slab with galvanized reinforcing dowels spaced at twelve inches on center. A quarter-inch fillet weld secures the stair stringer, provided by the stair manufacturer, to the angle assembly. Slab thickness and specific reinforcement details are sized per plan.
TO SLAB L6x4x3/8 LLV CONT W/ #5x2'-0"@12" GALV FOR REINF SEE PLAN STRINGER (BY STAIR MFR) SAD SEE PLAN SLAB THK SAD 1-1/2". 1/4
