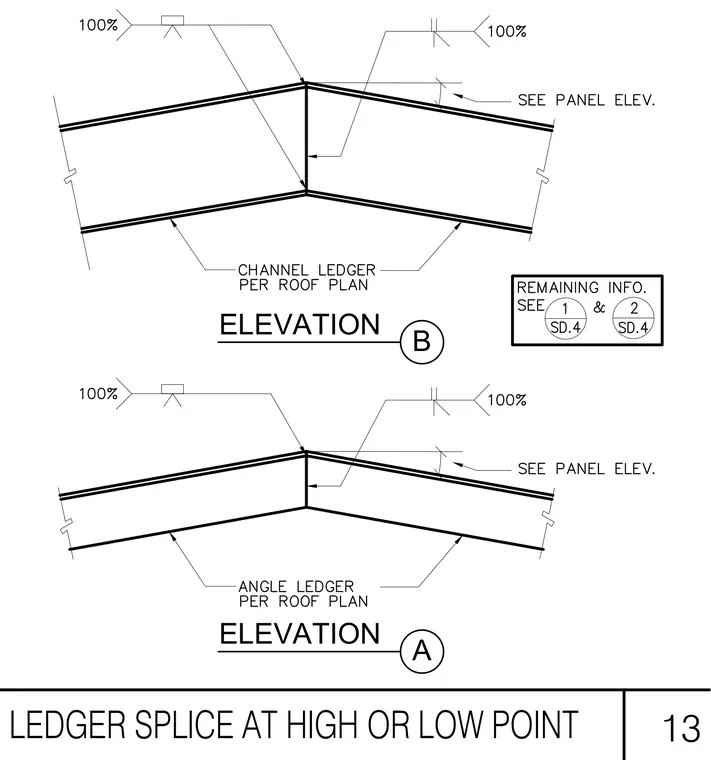

Two structural elevations detail channel and angle ledger splices at high or low roof points. The channel ledger and angle ledger are sized per the roof plan, meeting at a vertical splice joint with specific one-hundred percent weld symbols indicated. Additional references point to panel elevations and remaining information shown on detail sheets SD.4.
