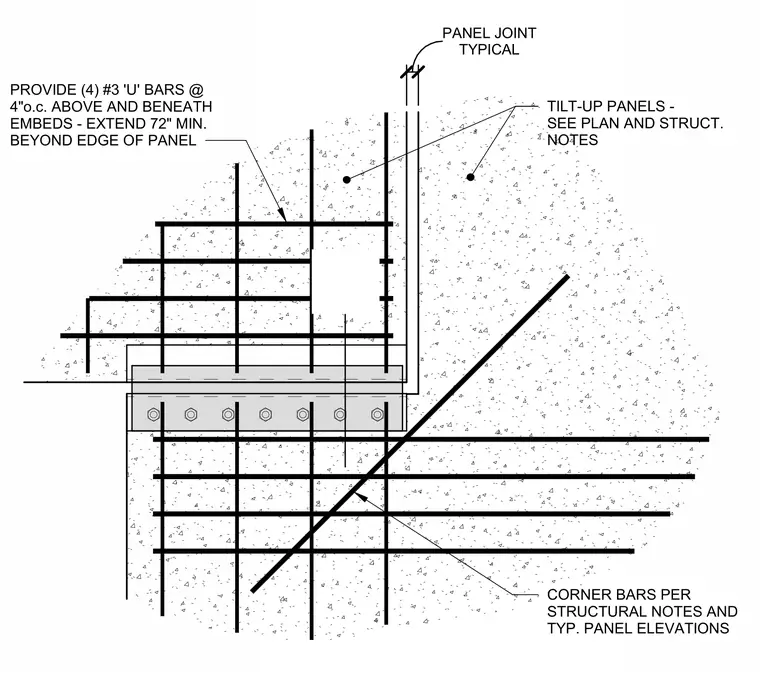

This assembly details the reinforcement surrounding an embed plate within a tilt-up concrete panel. Four number three U-bars are spaced at four inches on center, positioned both above and beneath the embed plate, and must extend a minimum of seventy-two inches beyond the edge of the panel. Corner bars are installed as specified in the structural notes and typical panel elevations. The panel joint is indicated as typical, with panel sizing and structural notes referenced per the plan.
