Structural · S-58SWN

HSS Post and W6 Hoist Beam Elevation Framing

Materials

Steel

Elements

Columns Beams Arches

Connections

HSS Connection

About this detail

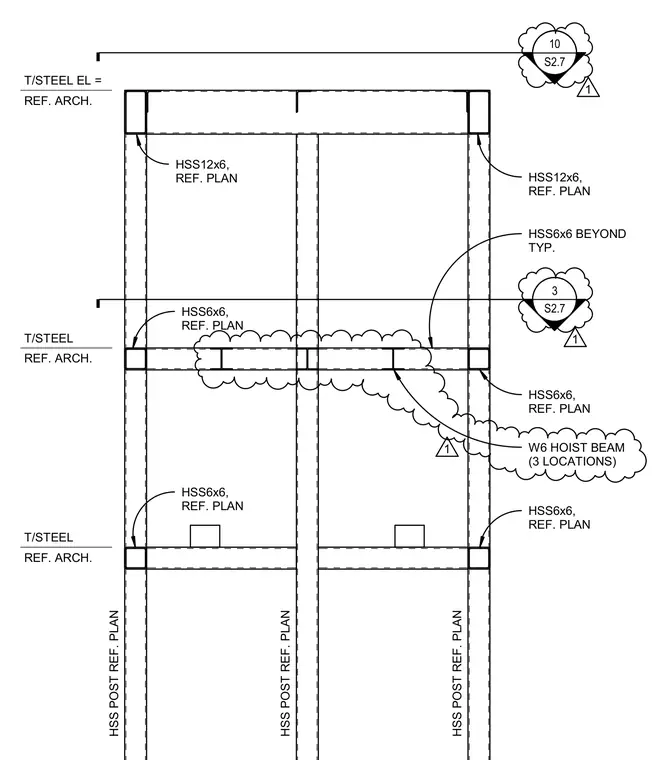

Steel framing elevation conditions utilize hollow structural section posts sized per plan, including HSS 6x6 and HSS 12x6 members. A W6 hoist beam is integrated at three locations with top of steel elevations referenced to architectural drawings. Detail callouts reference sheet S2.7 for additional connection and layout information.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
