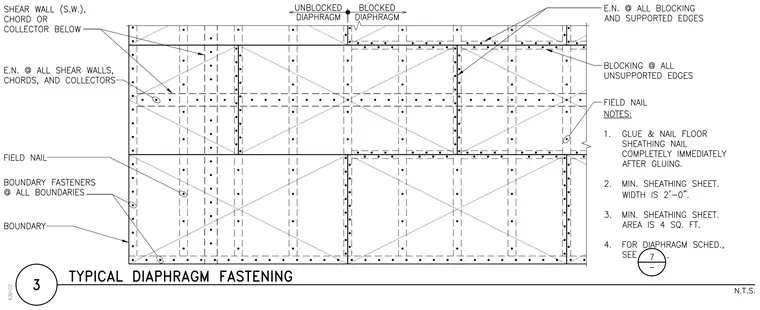

Typical floor or roof diaphragm fastening layouts indicate edge nailing (E.N.) at all blocking, supported edges, shear walls, chords, and collectors. Field nailing is applied across panel surfaces, while boundary fasteners are specified at all panel edges and boundaries. Blocking is required at all unsupported edges to ensure structural integrity. Accompanying field nail notes mandate gluing and nailing sheathing completely immediately after gluing, establishing a minimum sheathing sheet width of two feet, a minimum sheathing sheet area of four square feet, and referencing sheet 7 for the diaphragm schedule.
