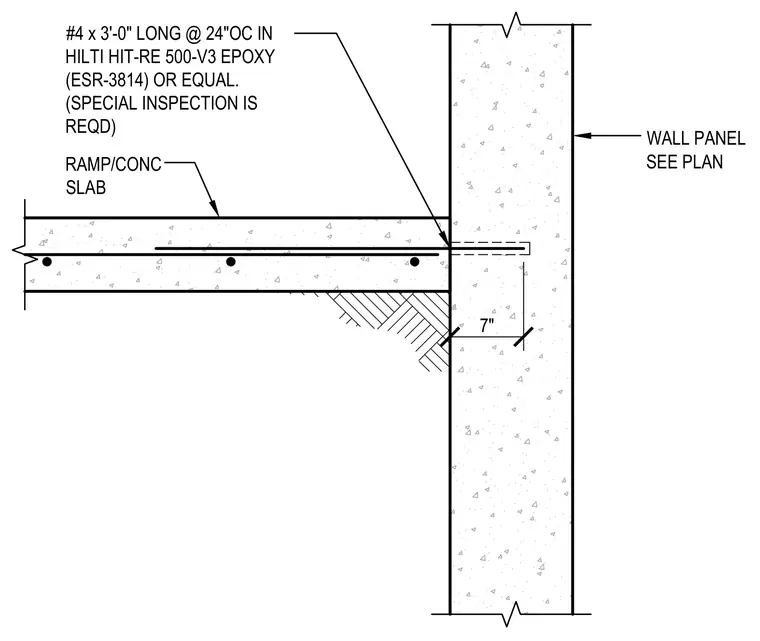

A concrete ramp slab connects to a seven-inch thick concrete wall panel using number four reinforcing bars, three feet long, spaced at twenty-four inches on center. The dowels are set in Hilti Hit-RE 500-V3 epoxy or equal, per ESR-3814. Special inspection is required for the epoxy-grouted anchors.
7" WALL PANEL SEE PLAN RAMP/CONC SLAB #4 x 3'-0" LONG @ 24"OC IN HILTI HIT-RE 500-V3 EPOXY (ESR-3814) OR EQUAL. (SPECIAL INSPECTION IS REQD)
