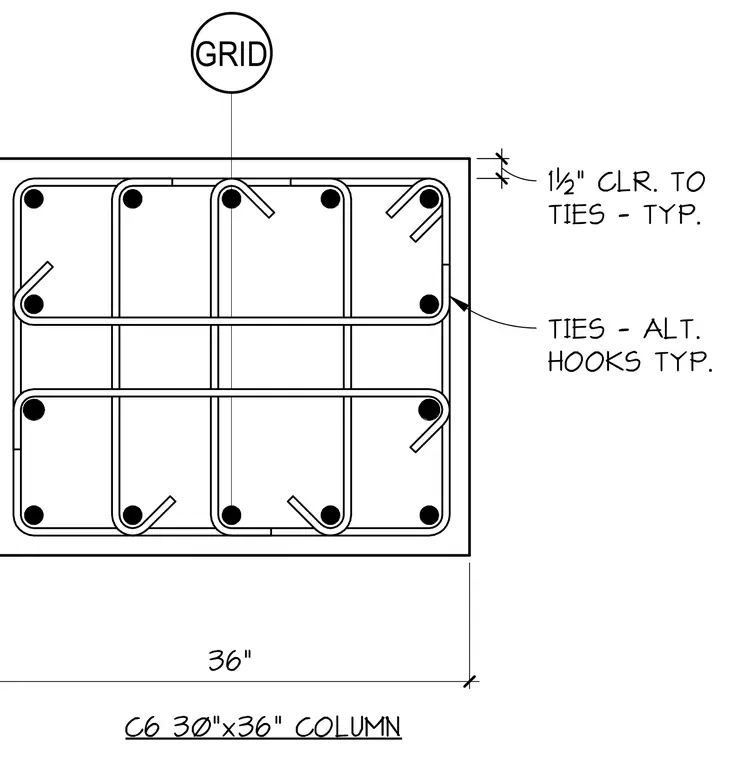

A 30-inch by 36-inch reinforced concrete column includes perimeter longitudinal reinforcing bars and interior ties with alternating hook configurations typically spaced throughout the member. A one-and-a-half-inch concrete clearance is maintained to the ties throughout the profile.
GRID 36" C6 30"x36" COLUMN 1½" CLR. TO TIES - TYP. 1 1/2" TIES - ALT. HOOKS TYP.
