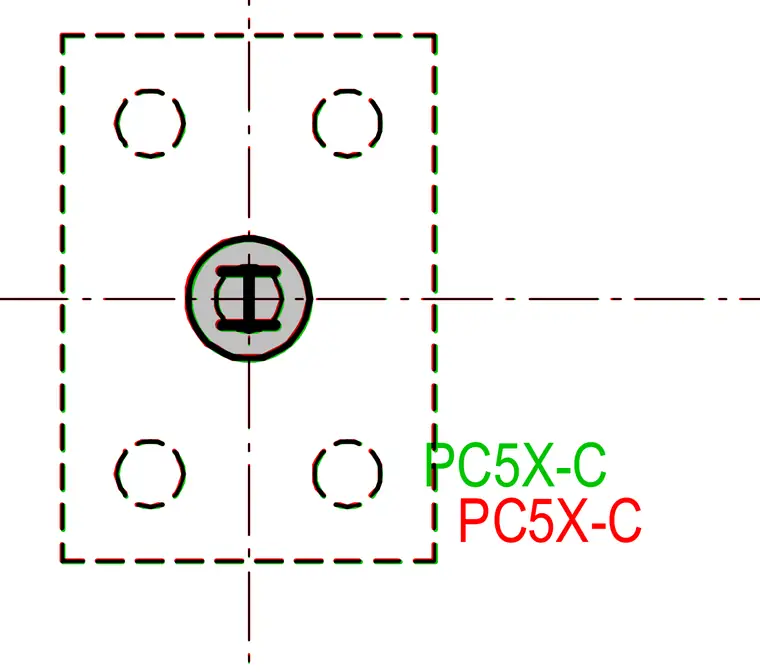

Precast concrete panel connection detail featuring an embedded steel plate with four corner fastener holes and a central anchor point. Dashed lines indicate the profile of the concealed embed plate aligning with the centerlines of the assembly. The central round element secures the plate within the concrete matrix.
