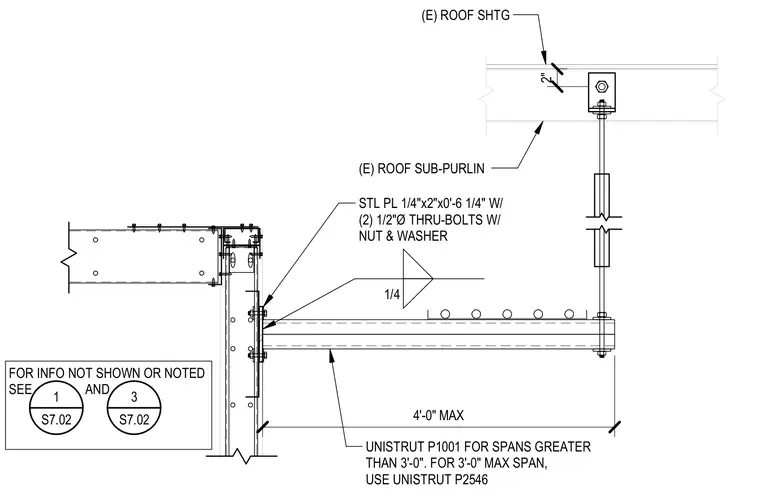

A cable tray hangs from an existing roof sub-purlin using a threaded rod and Unistrut channel. The hanging assembly uses Unistrut P1001 for spans greater than 3 feet and Unistrut P2546 for maximum spans up to 3 feet, anchored to the existing roof sheathing and sub-purlin. A horizontal support member connects to an existing vertical structural member via a 1/4 inch by 2 inch by 0 foot 6 and 1/4 inch steel plate secured with two 1/2 inch diameter through-bolts with nuts and washers.
4'-0" MAX FOR INFO NOT SHOWN OR NOTED SEE AND 3 S7.02 (E) ROOF SHTG 2" (E) ROOF SUB-PURLIN STL PL 1/4"x2"x0'-6 1/4" W/ (2) 1/2"Ø THRU-BOLTS W/ NUT & WASHER UNISTRUT P1001 FOR SPANS GREATER THAN 3'-0". FOR 3'-0" MAX SPAN, USE UNISTRUT P2546 1 S7.02 1/4
