Structural · S-587G7

Beam Connection at Column Weak Axis

Materials

weld

Elements

Columns

Connections

Welded Connection Bolted Connection

About this detail

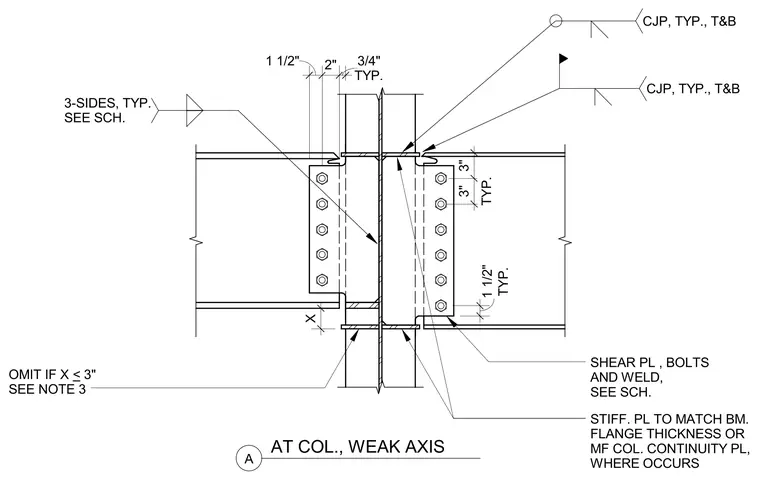

A steel beam frames into the weak axis of a column with shear plates, bolts, and welds sized per schedule. Stiffener plates match the beam flange thickness or serve as moment frame column continuity plates where applicable. Complete joint penetration welds are specified top and bottom with three-sided welds typical per schedule. A note indicates that the connection is to be omitted if dimension X is less than or equal to three inches, referencing note three.
