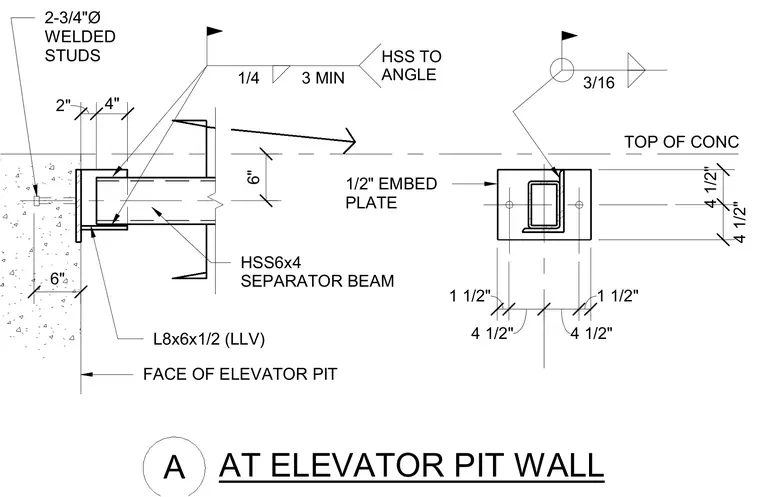

An HSS6x4 separator beam connects to a concrete elevator pit wall via a half-inch embed plate with two three-quarter-inch diameter welded studs. Two L8x6x1/2 angles are welded to the hollow structural section with a quarter-inch fillet weld and a three-inch minimum weld length. A three-sixteenth-inch fillet weld secures the angle connection. The embed plate aligns flush with the face of the concrete elevator pit.
TOP OF CONC FACE OF ELEVATOR PIT HSS6x4 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 4 1/2" 4 1/2" 3/16 1/4 3 MIN HSS TO ANGLE
