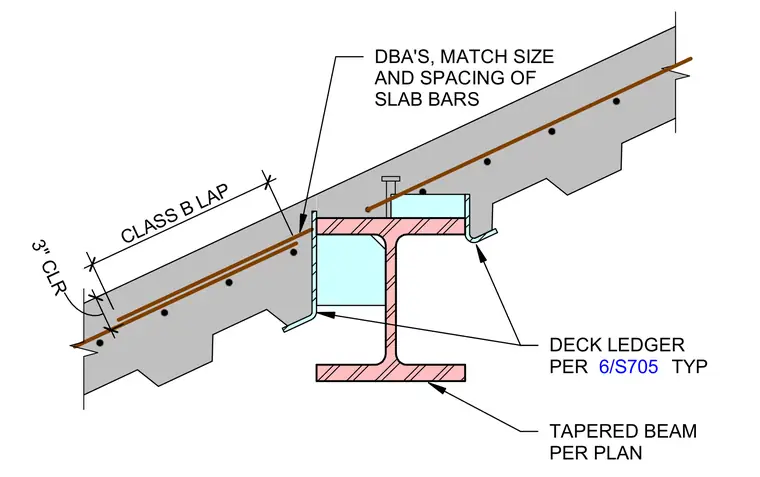

A tapered steel beam supports a concrete slab poured over metal deck with a three-inch clear cover. Slab reinforcement includes dowel bar adapters matched in size and spacing to the slab bars, featuring a Class B lap splice. Deck ledgers per typical detail secure the metal deck against the beam flange. The tapered steel beam is sized per plan.
3" CLR CLASS B LAP DBA'S, MATCH SIZE AND SPACING OF SLAB BARS TAPERED BEAM PER PLAN DECK LEDGER PER TYP 6/S705
