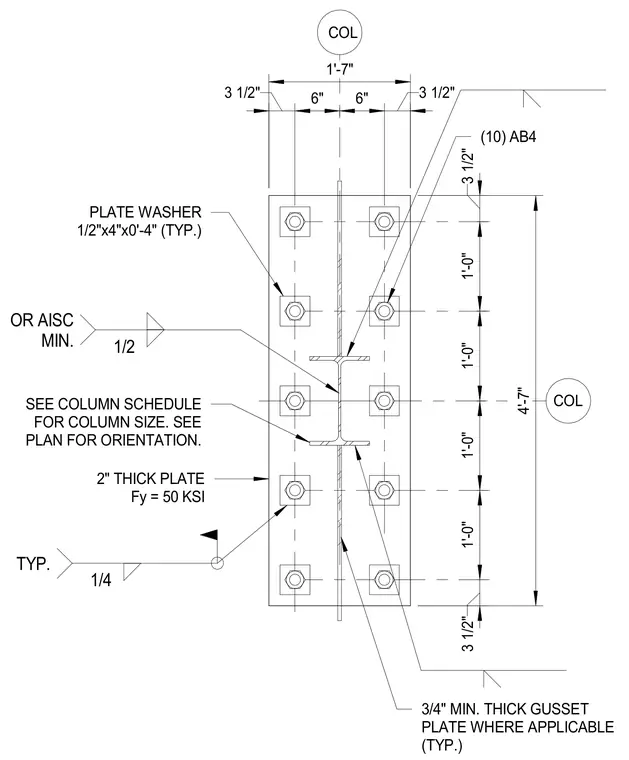

A structural steel column is anchored by a two-inch-thick base plate with a yield strength of 50 ksi, secured with ten anchor bolts. Plate washers measuring one-half inch by four inches by four inches are typical at the bolt locations. A minimum three-quarter-inch-thick gusset plate is included where applicable, welded with typical one-quarter-inch fillet welds. The column size is determined per the column schedule and its orientation per the plan.
1/2 OR AISC MIN. SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION. 2" THICK PLATE Fy = 50 KSI (10) AB4 PLATE WASHER 1/2"x4"x0'-4" (TYP.) 3/4" MIN. THICK GUSSET PLATE WHERE APPLICABLE (TYP.) COL COL 1'-7" 3 1/2" 6" 6" 3 1/2" 4'-7" 3 1/2" 1'-0" 1'-0" 1'-0" 1'-0" 3 1/2" 1/4 TYP.
