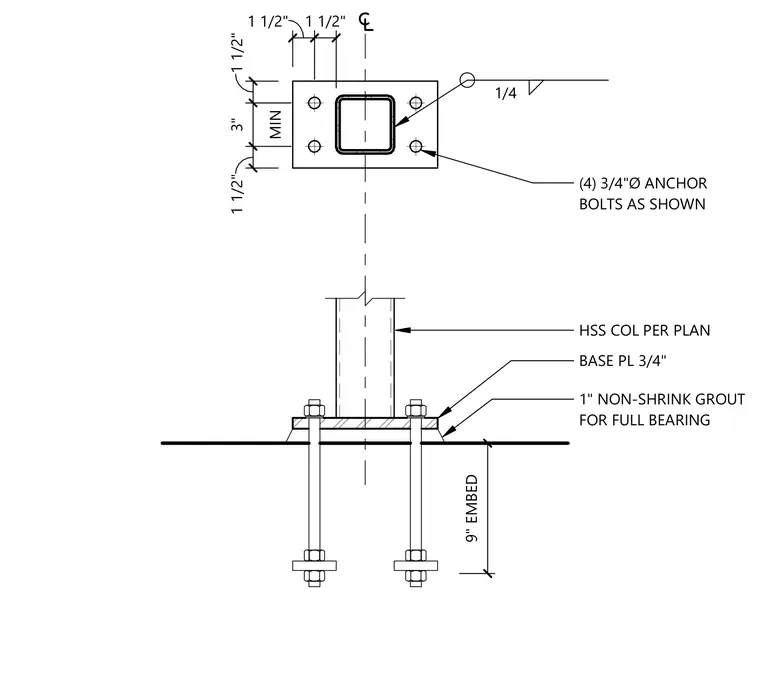

A hollow structural section steel column is welded to a three-quarter-inch base plate with a quarter-inch fillet weld. The assembly is secured to the concrete foundation using four three-quarter-inch diameter anchor bolts embedded nine inches into the footing. A one-inch layer of non-shrink grout is placed beneath the base plate to provide full bearing.
1/4 (4) 3/4"Ø ANCHOR BOLTS AS SHOWN HSS COL PER PLAN BASE PL 3/4" 1" NON-SHRINK GROUT FOR FULL BEARING 1 1/2" MIN 3" 1 1/2" 1 1/2" 1 1/2" 9" EMBED
