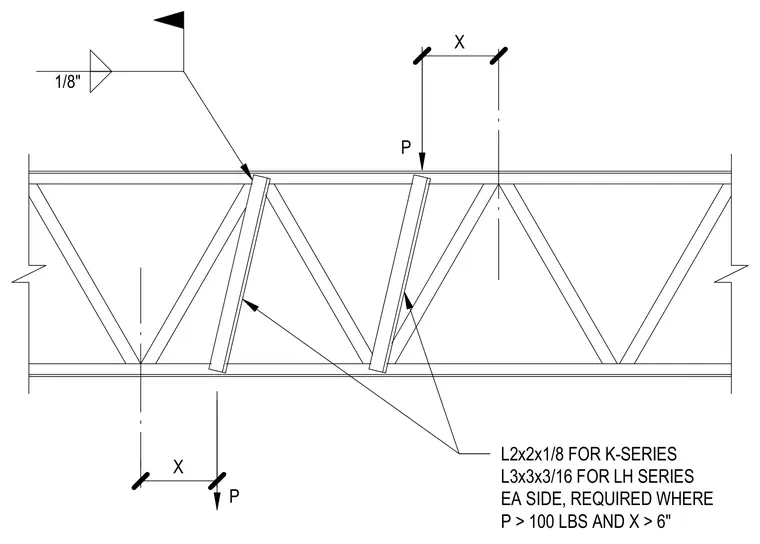

An angle measuring 2x2x1/8 for K-series joists or 3x3x3/16 for LH-series joists is placed on each side and required where the concentrated load exceeds 100 pounds and the offset distance exceeds 6 inches, welded with a 1/8-inch fillet weld.
X X P P L2x2x1/8 FOR K-SERIES L3x3x3/16 FOR LH SERIES EA SIDE, REQUIRED WHERE P > 100 LBS AND X > 6" 1/8"
