Structural · S-57DSN

Post-Tensioned Concrete Beam Framing into Girder

Materials

Elements

About this detail

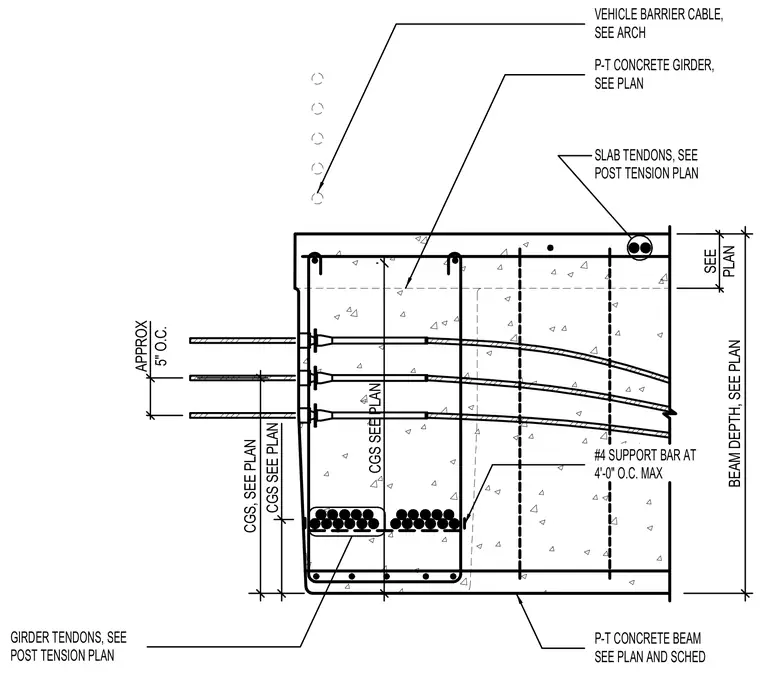

A post-tensioned concrete beam frames into a post-tensioned concrete girder with continuous slab tendons located per the post-tension plan. The assembly includes number four support bars spaced at a maximum of four feet on center. Girder tendons and center of gravity of strand profiles are coordinated per structural plans. Vehicle barrier cables are integrated at the upper zone per architectural requirements.
