Structural · S-57BN9

Rail Support At Elevator Pit

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

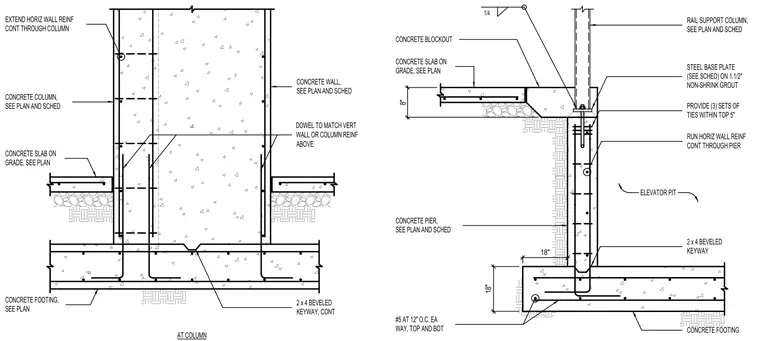

A rail support column rests on a quarter-inch steel base plate set over one and a half inches of non-shrink grout atop a concrete pier and footing. The concrete pier features three sets of ties within the top five inches and continuous horizontal wall reinforcement running through the pier. A concrete slab on grade interfaces with a concrete blockout containing a two-by-four beveled keyway. The adjacent concrete column integrates continuous horizontal wall reinforcement extending through the column with dowels matching the vertical wall or column reinforcement above the elevator pit. The concrete footing is reinforced with number five bars at twelve inches on center each way, placed at the top and bottom.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
