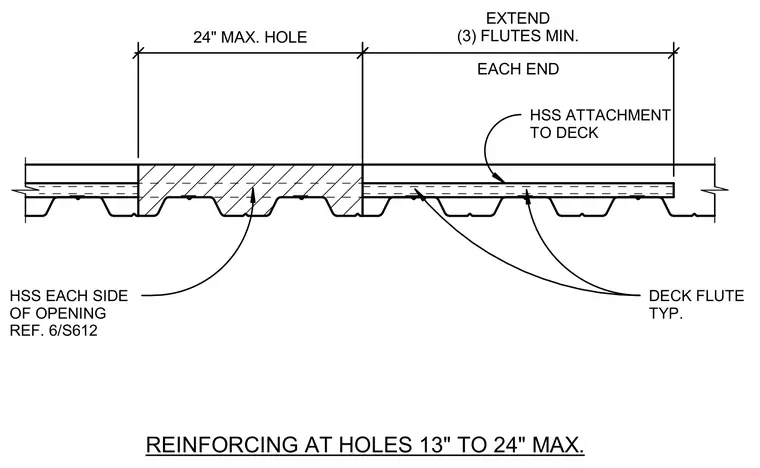

Metal deck openings from thirteen to twenty-four inches maximum are framed with hollow structural sections on each side and reinforced along the deck flutes. The hollow structural sections extend a minimum of three flutes past each end of the opening. Reinforcing elements attach directly to the metal deck flutes.
HSS EACH SIDE OF OPENING REF. 6/S612 DECK FLUTE TYP. REINFORCING AT HOLES 13" TO 24" MAX. 24" MAX. HOLE EACH END EXTEND (3) FLUTES MIN. HSS ATTACHMENT TO DECK
