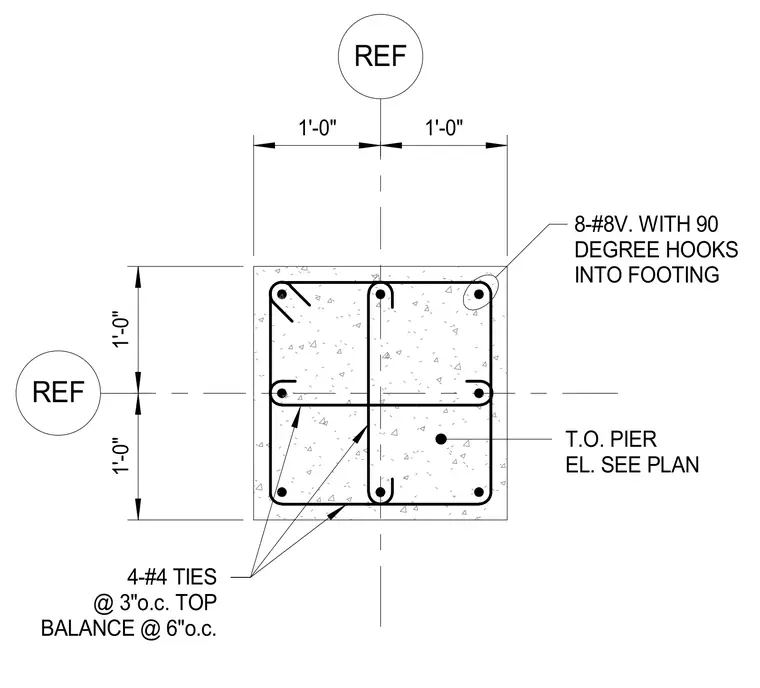

A square concrete pier is reinforced with eight number eight vertical bars featuring ninety-degree hooks anchored into the footing. Transverse reinforcement consists of number four ties spaced at three inches on center at the top, and six inches on center for the balance of the pier height.
REF 1'-0" 1'-0" 1'-0" 1'-0" 4-#4 TIES @ 3"o.c. TOP BALANCE @ 6"o.c. 8-#8V. WITH 90 DEGREE HOOKS INTO FOOTING T.O. PIER EL. SEE PLAN REF
