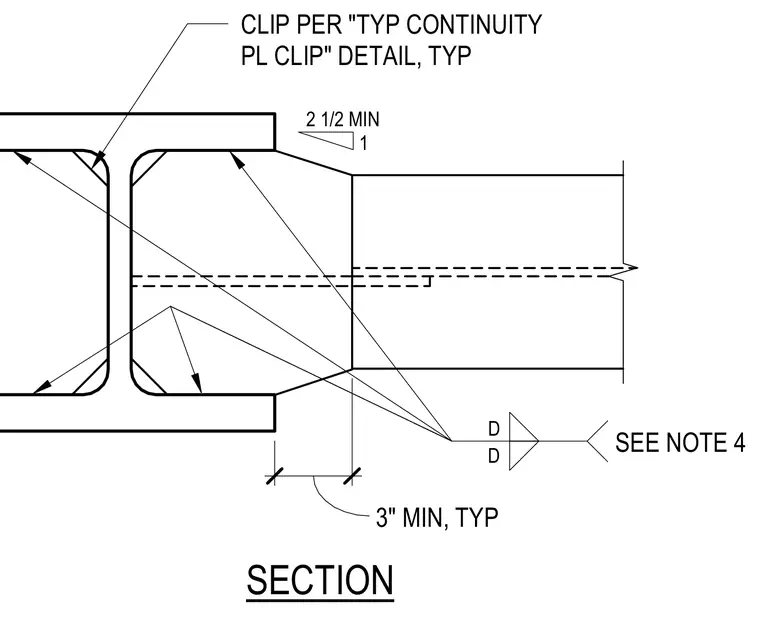

A structural steel beam frames into a wide-flange column with continuity plate clips welded at the flange junctions. The connection features a tapered transition plate with a slope of two and one-half to one, maintaining a minimum three-inch dimension typical at the connection. Additional plate clips are detailed per standard continuity plate specifications, with connection details referenced to specific project notes.
SEE NOTE 4 D D CLIP PER "TYP CONTINUITY PL CLIP" DETAIL, TYP 2 1/2 MIN 1 SECTION 4" 3" MIN, TYP
