Where hooked development length or tension lap splice length is noted on plans or details, applicable lengths must be provided per standard conditions. The hooked bar dimension measures from the hook tail to the critical section, while the tension lap splice dimension measures between specified points along the parallel bars. These dimensions govern concrete reinforcement embedment and continuity across structural elements.

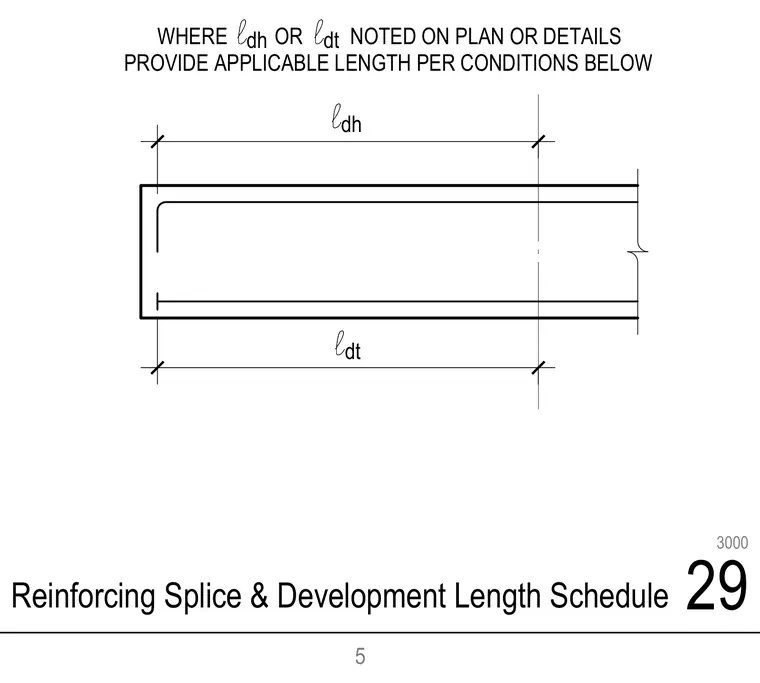

l dh l dt WHERE OR NOTED ON PLAN OR DETAILS PROVIDE APPLICABLE LENGTH PER CONDITIONS BELOW l dh l dt 5 29 Reinforcing Splice & Development Length Schedule 3000
