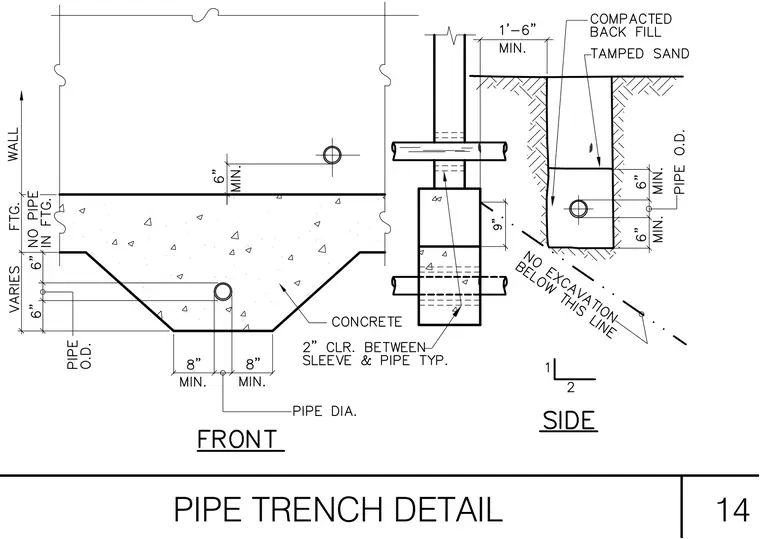

A concrete wall and stepped footing accommodate pipe penetrations with specified clearances including six inches minimum from the top of footing and pipe outer diameters. A separate side view of the pipe trench indicates tamped sand bedding, compacted backfill, and a minimum trench width of one foot six inches. Pipes running through sleeves require two inches of clearance between the sleeve and pipe typically. A dashed limit line notes no excavation below this line near the footing.
