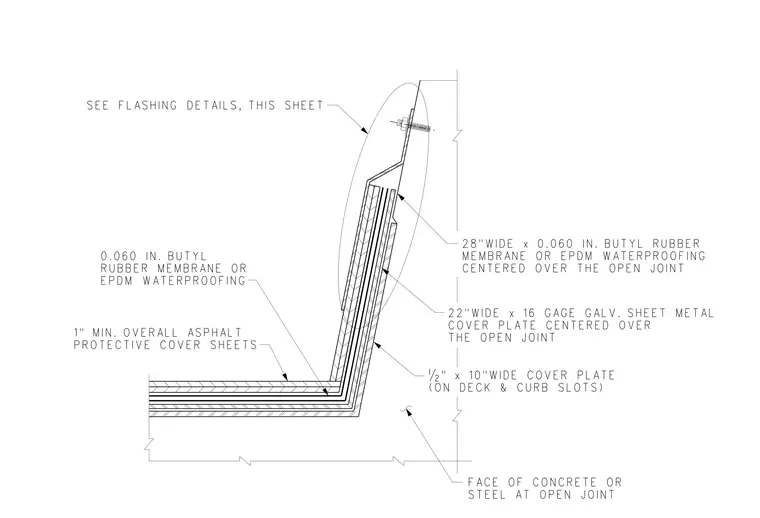

This transverse section details an expansion joint assembly across a concrete or steel deck and curb. The joint is sealed with a twenty-eight-inch wide by 0.060-inch thick butyl rubber or EPDM waterproofing membrane centered over the open joint. A twenty-two-inch wide by 16-gauge galvanized sheet metal cover plate is installed over the membrane, supplemented by a one-half-inch by ten-inch wide steel cover plate positioned on the deck and curb slots. The assembly incorporates minimum one-inch overall asphalt protective cover sheets layered over the waterproofing membrane.
CENTERED OVER THE OPEN JOINT MEMBRANE OR EPDM WATERPROOFING 28"WIDE x 0.060 IN. BUTYL RUBBER (ON DECK & CURB SLOTS) " x 10"WIDE COVER PLATE STEEL AT OPEN JOINT FACE OF CONCRETE OR PROTECTIVE COVER SHEETS 1" MIN. OVERALL ASPHALT EPDM WATERPROOFING RUBBER MEMBRANE OR 0.060 IN. BUTYL THE OPEN JOINT COVER PLATE CENTERED OVER 22"WIDE x 16 GAGE GALV. SHEET METAL THIS SHEET SEE FLASHING DETAILS,
