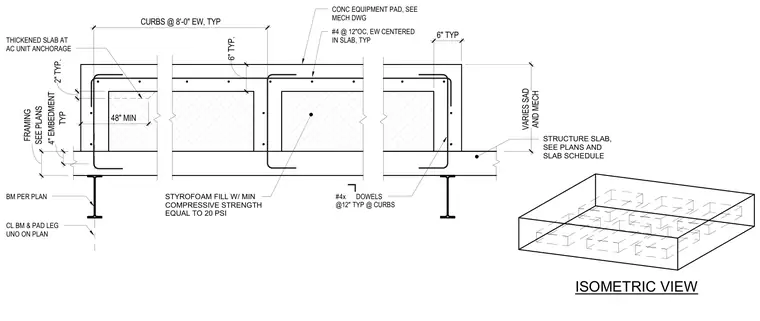

A concrete equipment pad rests on a structural concrete slab and features internal styrofoam fill with a minimum compressive strength of twenty psi. Number four reinforcing bars are placed at twelve inches on center each way, centered in the slab. Number four dowels at twelve inches typical are tied at the curbs and mechanical varies as shown on drawings. The structural slab sits on steel beams sized per plans.
CONC EQUIPMENT PAD, SEE MECH DWG #4 @ 12"OC, EW CENTERED IN SLAB, TYP STRUCTURE SLAB, SEE PLANS AND SLAB SCHEDULE STYROFOAM FILL W/ MIN COMPRESSIVE STRENGTH EQUAL TO 20 PSI 6" TYP TYP 4" EMBEDMENT CURBS @ 8'-0" EW, TYP #4x DOWELS @12" TYP @ CURBS AND MECH VARIES SAD SEE PLANS FRAMING ISOMETRIC VIEW 6" TYP. 2" TYP. 48" MIN THICKENED SLAB AT AC UNIT ANCHORAGE CL BM & PAD LEG UNO ON PLAN BM PER PLAN
