An L6x6x7/16 structural steel angle is anchored at the edge of a cross-laminated timber slab to receive load-bearing exterior wall supports and clips. A gauge metal edge form is secured to the angle using powder-actuated fasteners. Structural wood screws spaced at nine inches on center in a staggered layout fasten the assembly to the CLT panel.

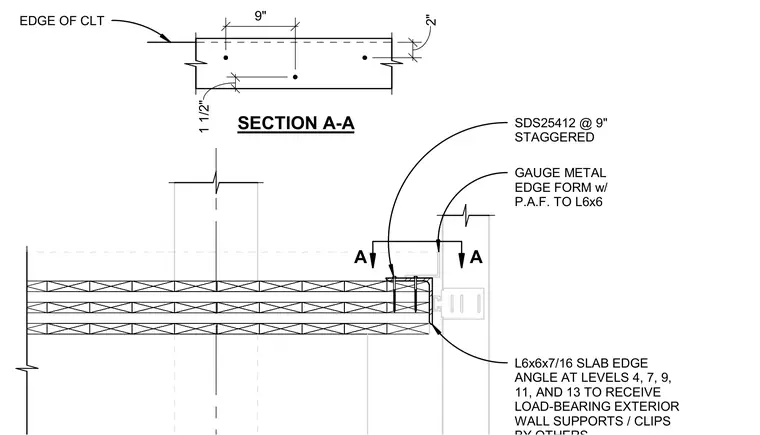

1 1/2" 2" 9" EDGE OF CLT SECTION A-A A A SDS25412 @ 9" STAGGERED GAUGE METAL EDGE FORM w/ P.A.F. TO L6x6 L6x6x7/16 SLAB EDGE ANGLE AT LEVELS 4, 7, 9, 11, AND 13 TO RECEIVE LOAD-BEARING EXTERIOR WALL SUPPORTS / CLIPS
