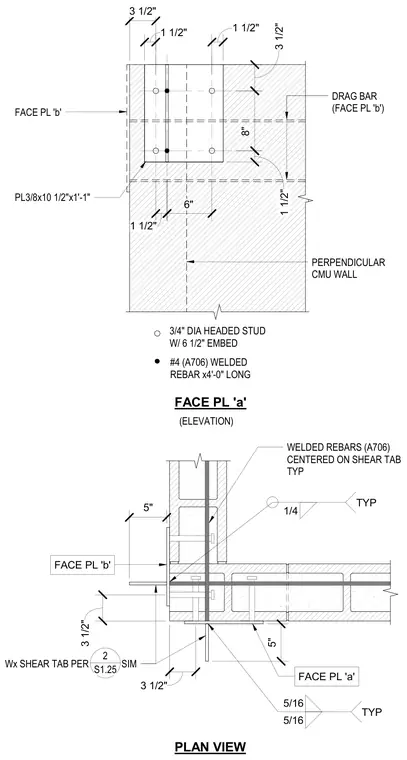

A structural detail for a drag connection joining a perpendicular concrete masonry unit wall with embedded face plates 'a' and 'b'. The connection incorporates a 3/8-inch by 10-1/2-inch by 1'-1" plate, a structural steel shear tab sized per plan, and ASTM A706 grade #4 welded rebar measuring four feet long centered on the shear tab. Anchorage into the masonry is achieved using 3/4-inch diameter headed studs with a 6-1/2-inch embedment depth. Fillet welds measuring 1/4-inch and 5/16-inch are specified throughout the assembly typical to the connection layout.
3 1/2" 1 1/2" 3 1/2" 1 1/2" 1 1/2" 6" 8" 1 1/2" FACE PL 'b' PL3/8x10 1/2"x1'-1" PERPENDICULAR CMU WALL DRAG BAR (FACE PL 'b') FACE PL 'a' (ELEVATION) #4 (A706) WELDED REBAR x4'-0" LONG 3/4" DIA HEADED STUD W/ 6 1/2" EMBED PLAN VIEW 3 1/2" 5" 3 1/2" 5" WELDED REBARS (A706) CENTERED ON SHEAR TAB TYP FACE PL 'a' FACE PL 'b' Wx SHEAR TAB PER SIM 5/16 5/16 TYP 1/4 TYP 2 S1.25
