Structural · S-56NH7

WF Beam to WF Beam Shear Tab Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

Beam-to-Beam Welded Connection Bolted Connection Expansion / Slip Connection

About this detail

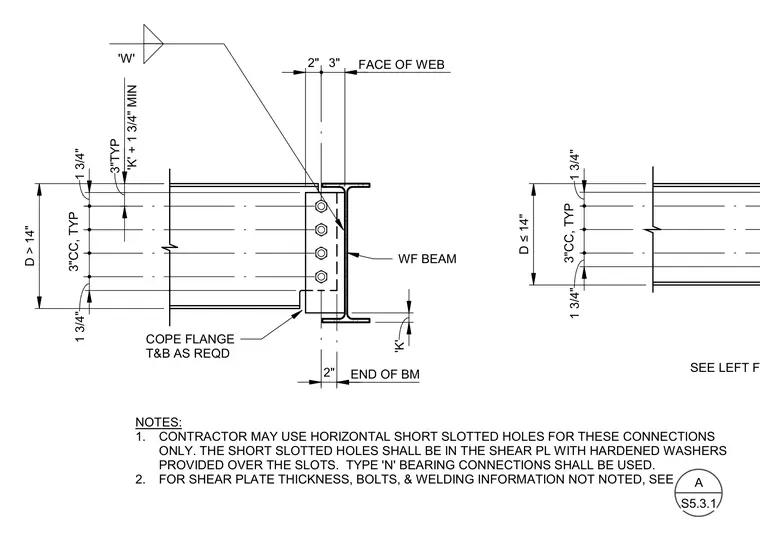

A wide-flange beam connects to the web of a supporting wide-flange beam using a vertical shear plate welded to the support and bolted to the supported beam web. The supported beam features top and bottom flange copes sized according to the beam depth, maintaining specific clearances from the face of the web and the 'K' distance. Type 'N' bearing connections with horizontal short-slotted holes in the shear plate are permitted, complete with hardened washers over the slots. Unspecified plate thicknesses, bolt sizes, and welding details are governed by project schedules and notes.
