A four-inch concrete slab with number four reinforcing bars at sixteen inches each way bears on concrete fill over a metal deck. Concrete stub walls align with the deck flutes and feature expanded polystyrene foam filler between them. Reinforcing includes number four bars at twelve inches typical and ninety-degree hooks turned in the deck flute as required. The cold joint is roughened to a quarter-inch amplitude typical, and an alternate detail incorporates epoxy with Hilti HIT-RE 500 V3 into drilled holes with embed "X".

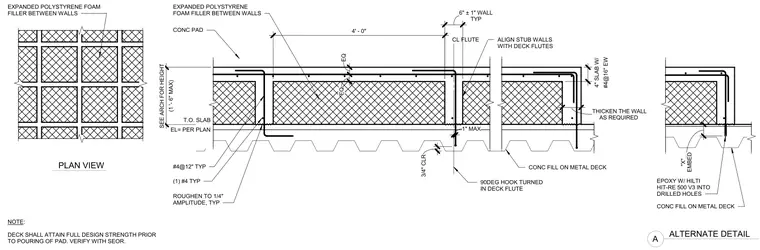

T.O. SLAB EL= PER PLAN CONC PAD NOTE: DECK SHALL ATTAIN FULL DESIGN STRENGTH PRIOR TO POURING OF PAD. VERIFY WITH SEOR. EXPANDED POLYSTYRENE FOAM FILLER BETWEEN WALLS CONC FILL ON METAL DECK PLAN VIEW (1 '- 6" MAX) SEE ARCH FOR HEIGHT 4' - 0" TYP 6" ± 1" WALL (1) #4 TYP #4@12" TYP ROUGHEN TO 1/4" AMPLITUDE, TYP EXPANDED POLYSTYRENE FOAM FILLER BETWEEN WALLS #4@16" EW 4" SLAB W/ CONC FILL ON METAL DECK EPOXY W/ HILTI HIT-RE 500 V3 INTO DRILLED HOLES EMBED "X" ALTERNATE DETAIL A EQ EQ 3/4" CLR CL FLUTE ALIGN STUB WALLS WITH DECK FLUTES 90DEG HOOK TURNED IN DECK FLUTE AS REQUIRED THICKEN THE WALL 1" MAX
