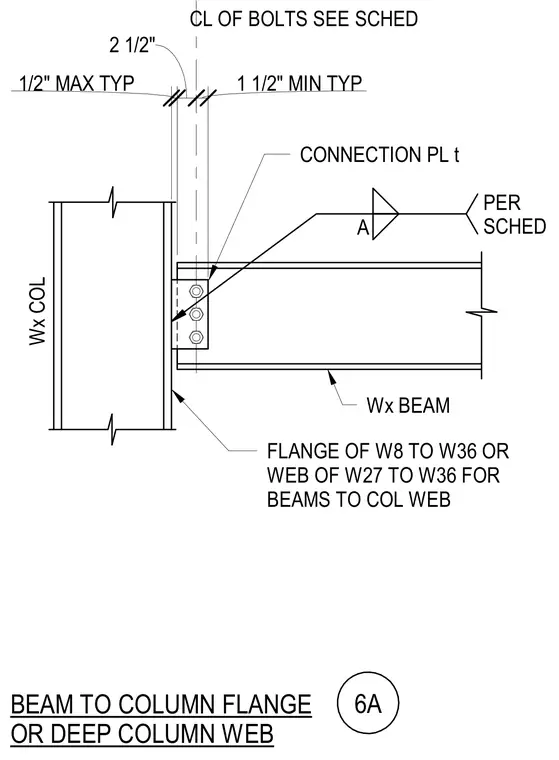

A wide-flange beam connects to a wide-flange column flange or deep column web using a connection plate of thickness t. The connection plate is welded to the beam with a specified weld size per schedule, and secured with bolts aligned on a centerline established per schedule. Clearances include a one-half-inch maximum typical gap and a one-and-one-half-inch minimum typical dimension from the centerline of bolts.
BEAM TO COLUMN FLANGE OR DEEP COLUMN WEB Wx COL CONNECTION PL t CL OF BOLTS SEE SCHED Wx BEAM FLANGE OF W8 TO W36 OR WEB OF W27 TO W36 FOR BEAMS TO COL WEB PER SCHED A 2 1/2" 1 1/2" MIN TYP 1/2" MAX TYP 6A
