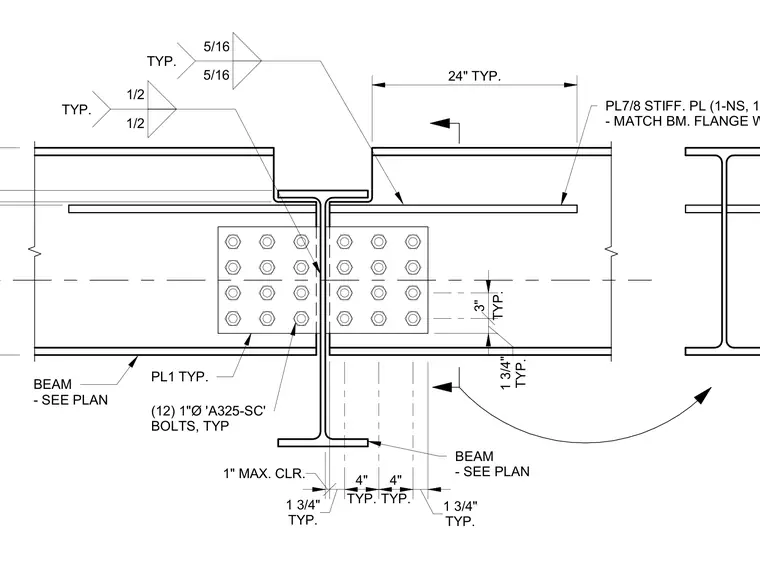

Two steel beams connect end-to-end to serve as a collector member. The web splice utilizes plate 1 typically with twelve 1-inch diameter ASTM A325 slip-critical bolts on each side. Plate 7/8 stiffener plates match the beam flange width and are welded to the web with 5/16-inch fillet welds. Additional plate connections feature 1/2-inch fillet welds.
24" TYP. 1" MAX. CLR. TYP. 1 3/4" TYP. 4" TYP. 4" TYP. 1 3/4" TYP. 1 3/4" TYP. 3" BEAM - SEE PLAN BEAM - SEE PLAN (12) 1"Ø 'A325-SC' BOLTS, TYP PL1 TYP. PL7/8 STIFF. PL (1-NS, 1-FS), TYP. - MATCH BM. FLANGE WIDTH 1/2 1/2 TYP. 5/16 5/16 TYP.
