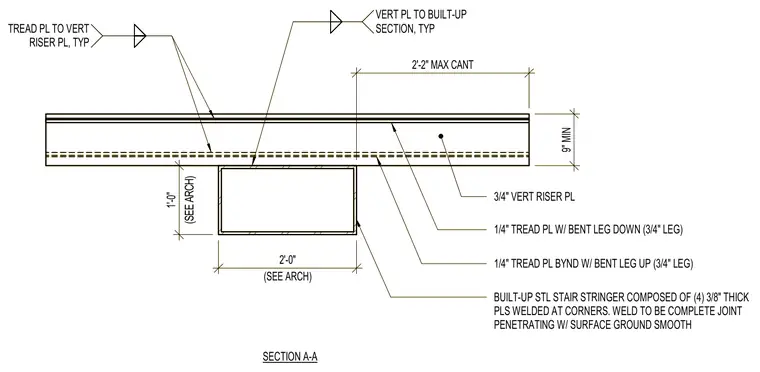

This section detail shows a built-up steel stair stringer composed of four three-eighths-inch thick plates welded at the corners with complete joint penetration and surfaces ground smooth. A one-quarter-inch tread plate extends beyond with a three-quarter-inch bent leg pointing up, paired with another one-quarter-inch tread plate featuring a three-quarter-inch bent leg pointing down. A three-quarter-inch vertical riser plate connects to the tread plate as indicated typical. The assembly connects to a vertical plate spanning into the built-up section with a maximum cantilever of two feet two inches and a minimum depth of nine inches.
SECTION A-A BUILT-UP STL STAIR STRINGER COMPOSED OF (4) 3/8" THICK PLS WELDED AT CORNERS. WELD TO BE COMPLETE JOINT PENETRATING W/ SURFACE GROUND SMOOTH 1/4" TREAD PL BYND W/ BENT LEG UP (3/4" LEG) 1/4" TREAD PL W/ BENT LEG DOWN (3/4" LEG) 9" MIN 3/4" VERT RISER PL TREAD PL TO VERT RISER PL, TYP 2'-2" MAX CANT (SEE ARCH) 1'-0" (SEE ARCH) 2'-0" VERT PL TO BUILT-UP SECTION, TYP SECTION A-A BUILT-UP STL STAIR STRINGER COMPOSED OF (4) 3/8" THICK PLS WELDED AT CORNERS. WELD TO BE COMPLETE JOINT PENETRATING W/ SURFACE GROUND SMOOTH 1/4" TREAD PL BYND W/ BENT LEG UP (3/4" LEG) 1/4" TREAD PL W/ BENT LEG DOWN (3/4" LEG) 9" MIN 3/4" VERT RISER PL TREAD PL TO VERT RISER PL, TYP 2'-2" MAX CANT (SEE ARCH) 1'-0" (SEE ARCH) 2'-0" VERT PL TO BUILT-UP SECTION, TYP
