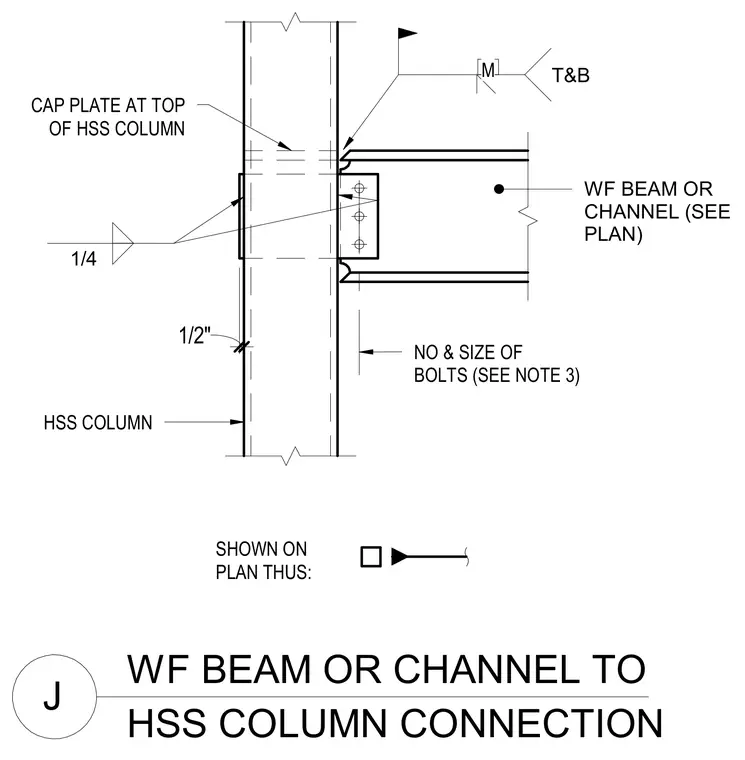

A wide-flange beam or channel frames into a hollow structural section column via a bolted connection with number and size of bolts sized per plan. A cap plate is welded to the top of the hollow structural section column with a one-quarter inch fillet weld. Additional connection plates are welded to the column face with a one-half inch weld.
WF BEAM OR CHANNEL TO J HSS COLUMN CONNECTION NO & SIZE OF BOLTS (SEE NOTE 3) HSS COLUMN WF BEAM OR CHANNEL (SEE PLAN) CAP PLATE AT TOP OF HSS COLUMN T&B 1/2" 1/4 M SHOWN ON PLAN THUS:
