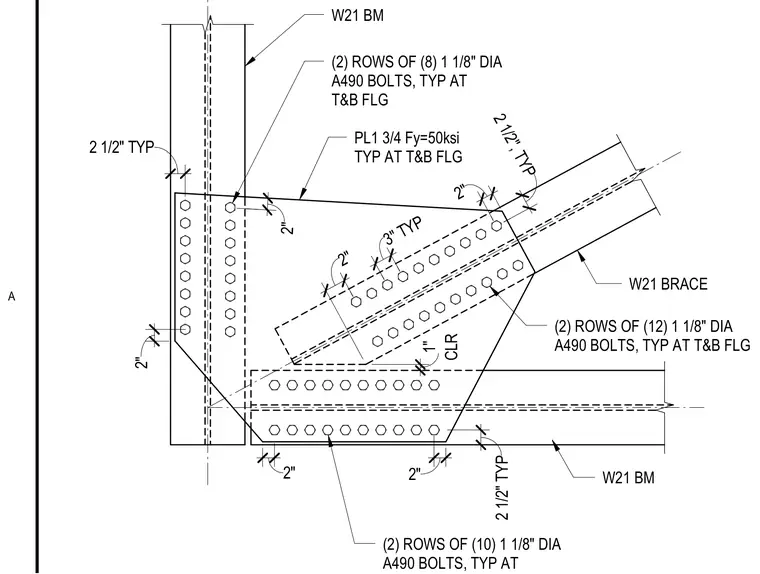

A W21 beam intersects a W21 vertical member and is tied into a heavy W21 brace using a 3/4-inch thick Grade 50 steel gusset plate. The connection utilizes two rows of 1-1/8-inch diameter A490 high-strength bolts at the top and bottom flanges of the beam and brace members. Clearances and edge distances are detailed with standard spacing dimensions.
2" CLR 1" 2 1/2" TYP 2" W21 BM (2) ROWS OF (8) 1 1/8" DIA A490 BOLTS, TYP AT T&B FLG 3" TYP PL1 3/4 Fy=50ksi TYP AT T&B FLG 2" 2 1/2", TYP W21 BRACE (2) ROWS OF (12) 1 1/8" DIA A490 BOLTS, TYP AT T&B FLG W21 BM 2" 2 1/2" TYP 2" (2) ROWS OF (10) 1 1/8" DIA A490 BOLTS, TYP AT 2" A
