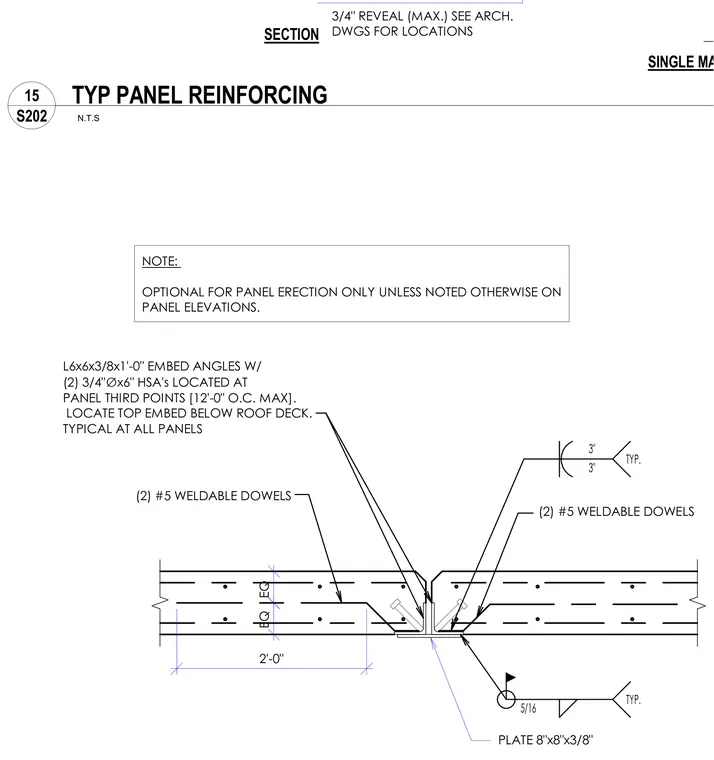

Adjacent concrete tilt-up wall panels are joined at the vertical joint using embedded steel angles and a bridging plate. The connection incorporates L6x6x3/8 by one-foot embed angles secured with two 3/4-inch diameter by 6-inch heavy stud anchors located at panel third points with a maximum 12-foot spacing. Two number 5 weldable dowels tie each panel into the connection zone, while an 8-inch by 8-inch by 3/8-inch plate bridges the joint with a 5/16-inch fillet weld typically. A maximum 3/4-inch architectural reveal is maintained at the joint, and the entire assembly is optional for panel erection only unless noted otherwise on panel elevations.
SINGLE MAT PANELS w/ REVEALS OR 3/4" REVEAL (MAX.) SEE ARCH. DWGS FOR LOCATIONS SECTION EQ EQ 2'-0" TYP. 5/16 TYP. 3" PLATE 8"x8"x3/8" L6x6x3/8x1'-0" EMBED ANGLES W/ (2) 3/4" ∅ x6" HSA's LOCATED AT PANEL THIRD POINTS [12'-0" O.C. MAX]. LOCATE TOP EMBED BELOW ROOF DECK. TYPICAL AT ALL PANELS (2) #5 WELDABLE DOWELS (2) #5 WELDABLE DOWELS 3" NOTE: OPTIONAL FOR PANEL ERECTION ONLY UNLESS NOTED OTHERWISE ON PANEL ELEVATIONS. N.T.S S202 15 TYP PANEL REINFORCING
