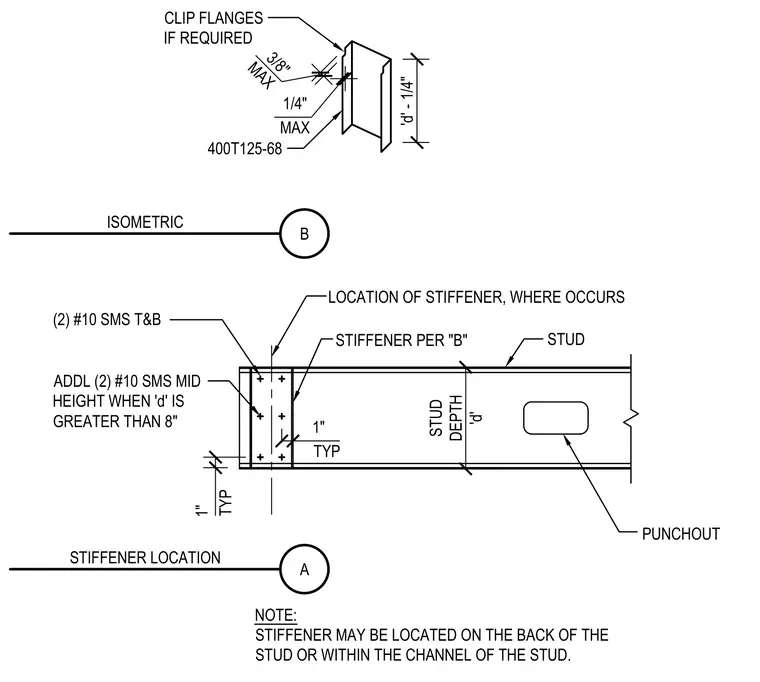

Cold-formed metal stud web stiffeners are fastened using two number ten self-tapping metal screws at the top and bottom. Additional two number ten self-tapping metal screws are added at mid-height when the stud depth exceeds eight inches. The stiffener may be located on the back of the stud or within the channel of the stud. Clearances require a one-quarter inch maximum gap with clip flanges provided if required.
STUD DEPTH 'd' 'd' - 1/4" 400T125-68 STIFFENER PER "B" 1/4" MAX LOCATION OF STIFFENER, WHERE OCCURS 1" TYP 1" TYP (2) #10 SMS T&B STUD CLIP FLANGES IF REQUIRED NOTE: STIFFENER MAY BE LOCATED ON THE BACK OF THE STUD OR WITHIN THE CHANNEL OF THE STUD. ADDL (2) #10 SMS MID HEIGHT WHEN 'd' IS GREATER THAN 8" PUNCHOUT 3/8" MAX A STIFFENER LOCATION B ISOMETRIC
