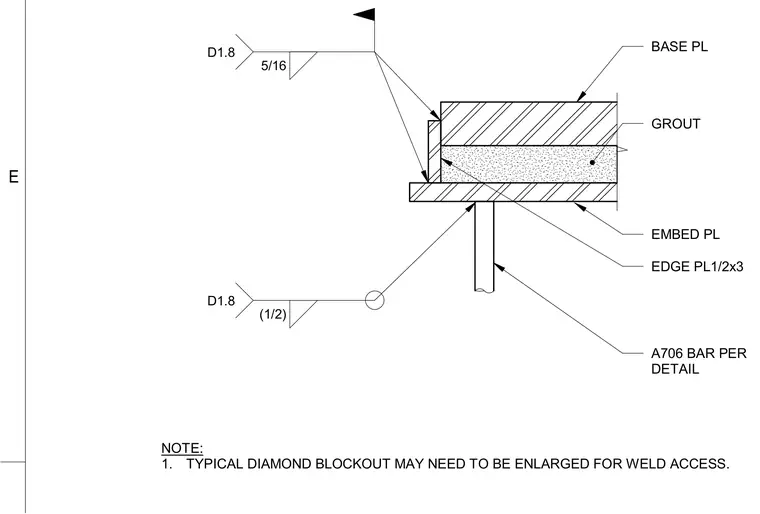

An embed plate connects to an ASTM A706 reinforcing bar welded underneath with a certified weld per AWS D1.8. An edge plate measuring 1/2 inch by 3 inches welds to the face of the embed plate using a 5/16 inch fillet weld, also conforming to AWS D1.8. A base plate sits above a layer of grout covering the embed assembly. A note indicates that the typical diamond blockout may need to be enlarged for weld access during installation.
A706 BAR PER DETAIL (1/2) D1.8 GROUT EMBED PL BASE PL EDGE PL1/2x3 5/16 D1.8 NOTE: 1. TYPICAL DIAMOND BLOCKOUT MAY NEED TO BE ENLARGED FOR WELD ACCESS. E
