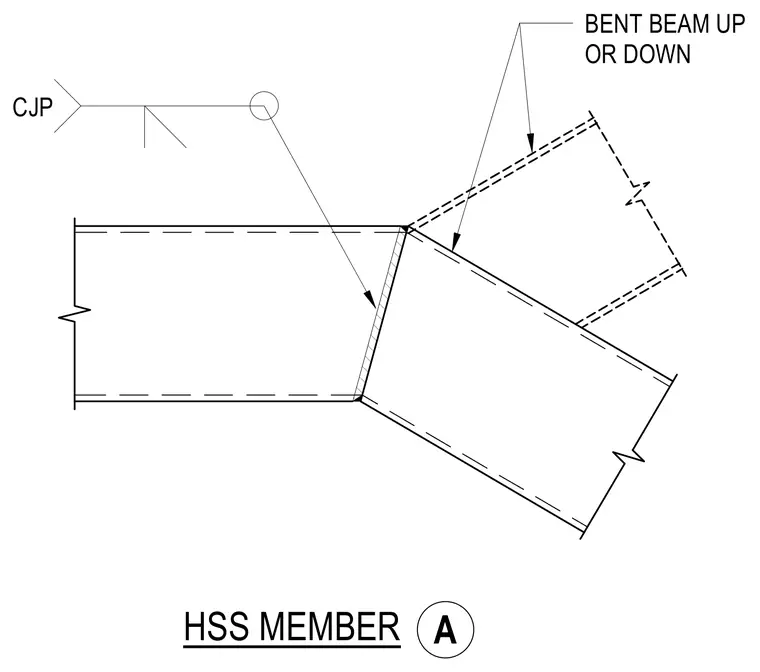

Two hollow structural section members meet at an angled miter joint configured to bend either upward or downward. The intersecting ends are joined using a complete joint penetration weld indicated along the interface.
