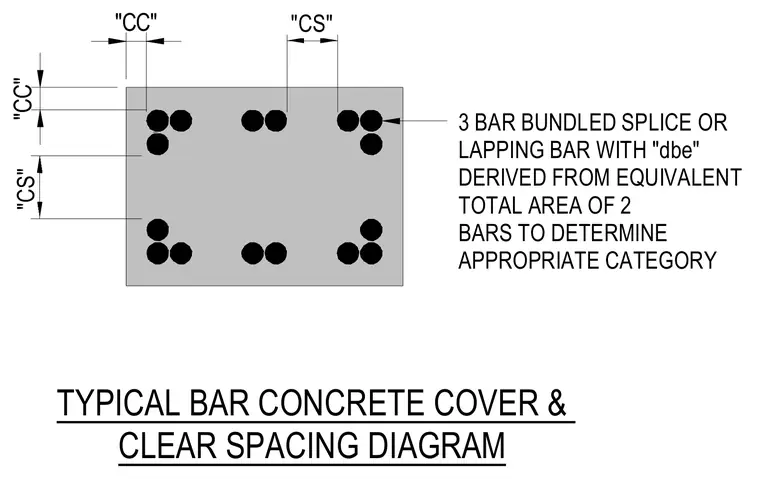

Standard concrete cover CC and clear spacing CS requirements for reinforcing bars within a concrete section. A three-bar bundled splice or lapping bar configuration is detailed, where the equivalent bar diameter dbe is derived from the total area of two bars to determine the appropriate category. Dimension callouts indicate spacing and cover dimensions across the concrete element.
TYPICAL BAR CONCRETE COVER & CLEAR SPACING DIAGRAM "CS" "CS" 3 BAR BUNDLED SPLICE OR LAPPING BAR WITH "dbe" DERIVED FROM EQUIVALENT TOTAL AREA OF 2 BARS TO DETERMINE APPROPRIATE CATEGORY "CC" "CC"
