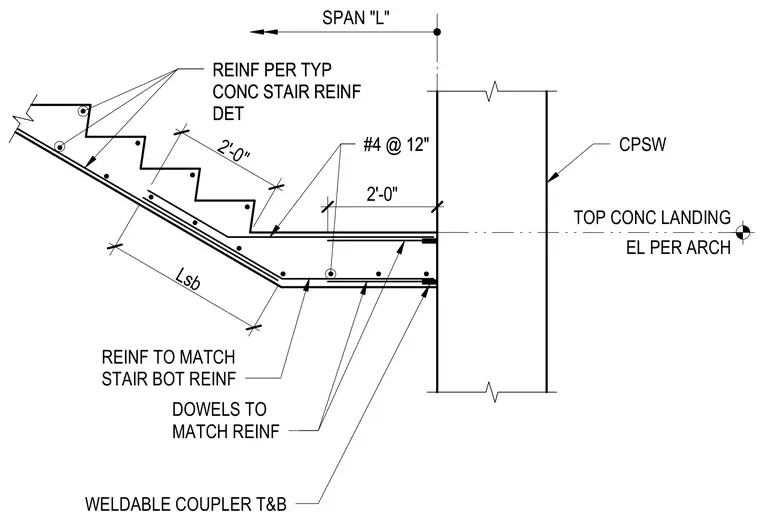

A cast-in-place concrete stair landing frames into a concrete shear wall perpendicular to the stair run. Number 4 reinforcing bars at twelve inches on center tie into the landing, matching the stair bottom reinforcing. Dowels match the main reinforcing and tie into top and bottom weldable couplers embedded in the shear wall. Additional reinforcement follows the typical concrete stair detail.
CPSW SPAN "L" 2'-0" Lsb DOWELS TO MATCH REINF #4 @ 12" REINF TO MATCH STAIR BOT REINF #4 @ 12" REINF PER TYP CONC STAIR REINF DET REINF PER TYP CONC STAIR REINF DET EL PER ARCH TOP CONC LANDING 2'-0" WELDABLE COUPLER T&B
